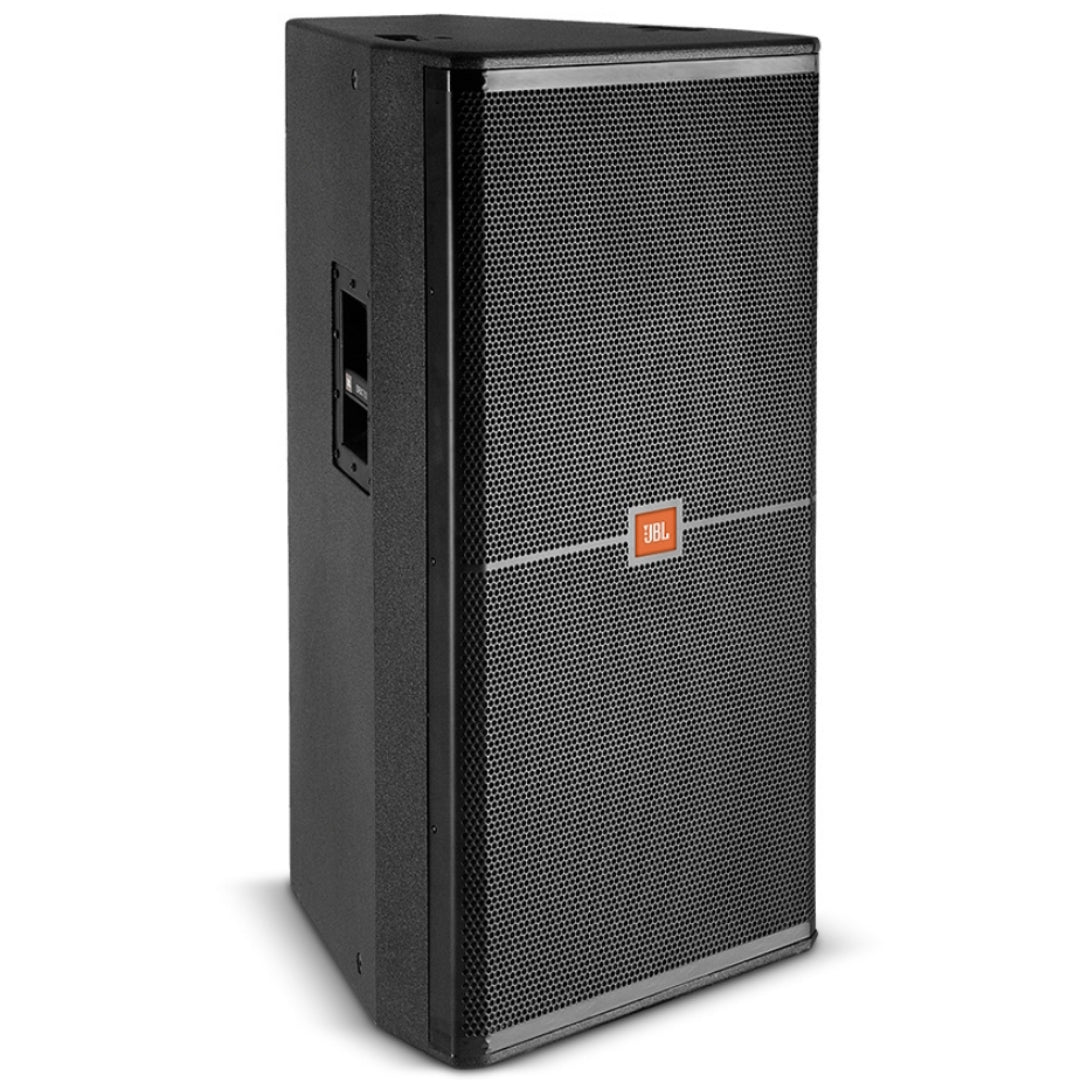

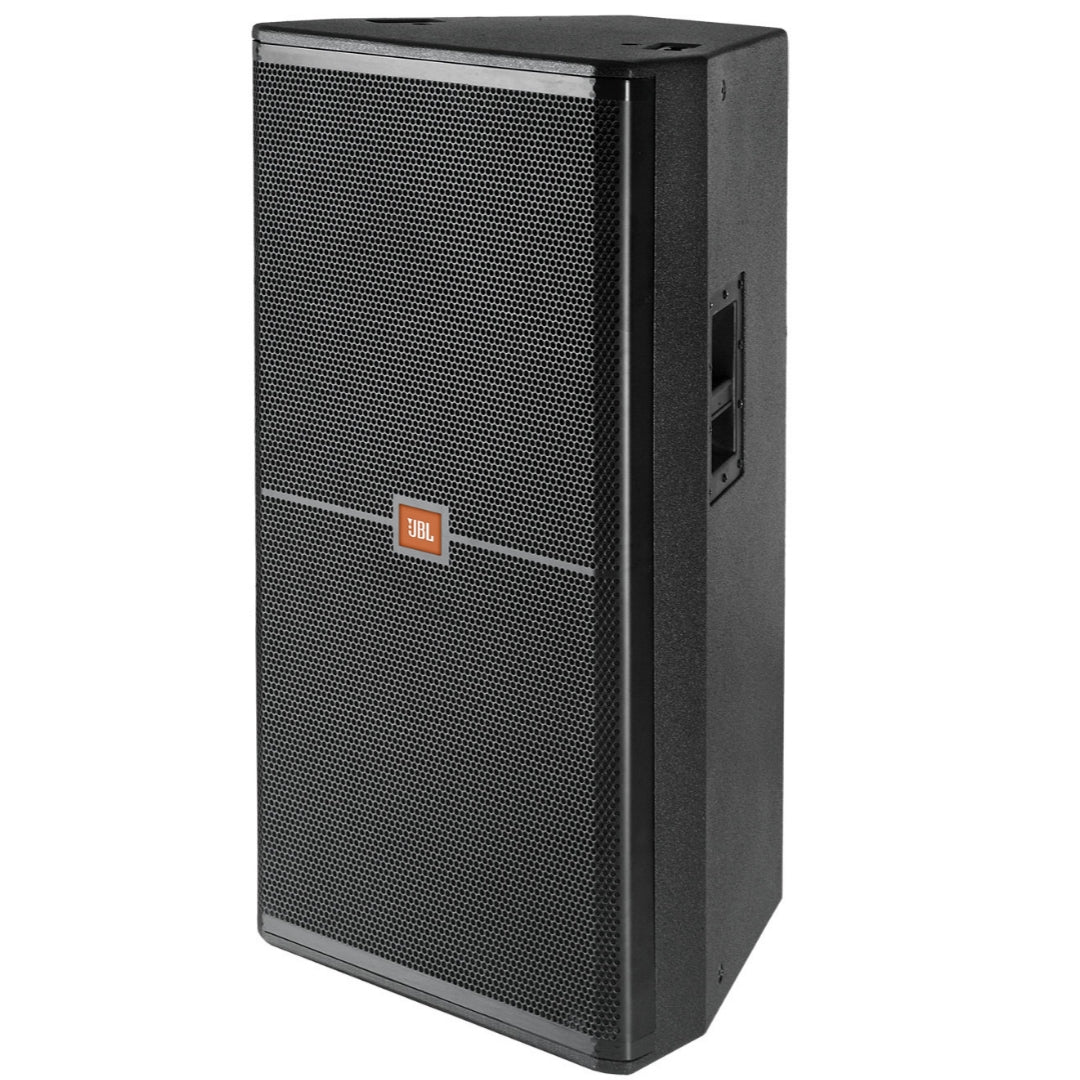

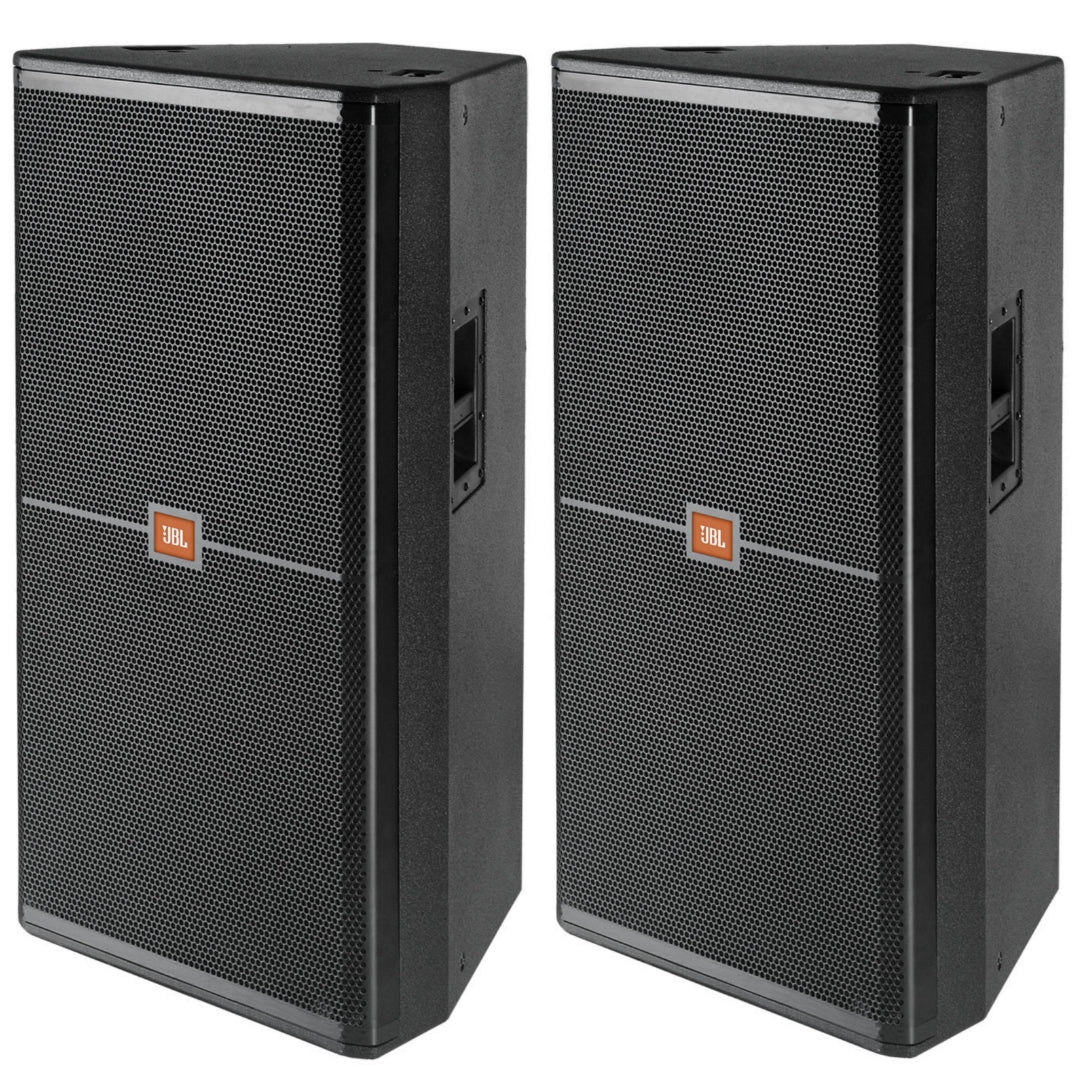

JBL SRX738 18-inch High Power 3-Way Passive Mid Range Loudspeaker - Brand New

MANUFACTURER'S DESCRIPTION

Get the most out of your audio experience with the JBL SRX738 - this 18-inch high power, 3-way passive loudspeaker packs a powerful punch with thumping bass delivering impressive sound quality.

Refined for the most demanding sound setup, you can trust it to deliver a balanced audio frequency response, resulting in an overwhelming performance.

The SRX738 combines the performance of a subwoofer-equipped system with single-enclosure ease of use.

• Reinforcement of vocal and instrumental music requiring low frequency extension
• Dance music playback 457 mm (18 in) Differential Drive® low-frequency driver for extended low-frequency output.
• CMCD™ Cone Midrange Compression Driver™ provides low midrange distortion, increased sensitivity, extended bandwidth and improved phase coherence.
• 60°x 40°coverage.
• Bi-amplified or full-range passive operation

SPECIFICATIONS

• Frequency Range (-10 dB): 35 Hz - 20 kHz
• Frequency Response (±3 dB): 44 Hz - 20 kHz
• Coverage Pattern: 60º x 40º nominal
• Crossover Modes: Bi-amp / passive, internally switchable
• Crossover Frequencies: 2 kHz / 350 Hz
• Power Rating (Continuous¹/Program/Peak):

1. Passive: 800 W / 1600 W / 3200 W
2. Bi-amp LF: 800 W / 1600 W / 3200 W
3. Bi-amp HF: 350 W / 700 W / 1400 W

• Maximum SPL²: 130 dB SPL peak
• System Sensitivity (1w @ 1m): 95 dB SPL (passive mode)
• Mid / High Sensitivity (1w @ 1m): 108 dB SPL (bi-amp mode)
• LF Driver: 1 x JBL 2268H 457 mm (18 inch) Differential Drive® woofer with neodymium-magnet and dual voice-coils
• MF Driver: 1 x JBL CMCD-81H Cone Midrange Compression Driver™, integral 2169H 200 mm (8 inch) Differential Drive®
• HF Driver: 1 x JBL 2431H 75 mm (3 in) voice-coil, neodymium-magnet compression driver
• Nominal Impedance: Passive: 8 ohms
• Bi-amp LF: 8 ohms
• Bi-amp HF: 8 ohms
• Active Tunings: dbx DriveRack, all models. Settings available at www.jblpro.com
• Enclosure: Trapezoidal, 15mm, 11-ply birch plywood
• Suspension / Mounting: 5 x suspension points, M10 or optional track kit (F version only)
• Transport: 2 x steel handles
• Finish: Black DuraFlex™ finish
• Grille: Powder coated, black, 16-gauge perforated steel with acoustically transparent charcoal foam backing
• Input Connectors: Neutrik ® Speakon® NL-4 (x2)
• Dimensions (H x W x D): 1092 mm x 541 mm x 648 mm (43 in x 21.3 in x 25.5 in)
• Net Weight: 43 kg (95 lb)
• Optional Accessories:

1. SRX738-CVR: Pull-over padded cover
2. SRX-FF3: Flying hardware kit (for use with F versions only)
3. 229-00009-01: Suspension kit, includes 3 x 10 mm forged eyebolts & washers (for use with F versions only

PACKAGE DETAILS

• JBL SRX738
