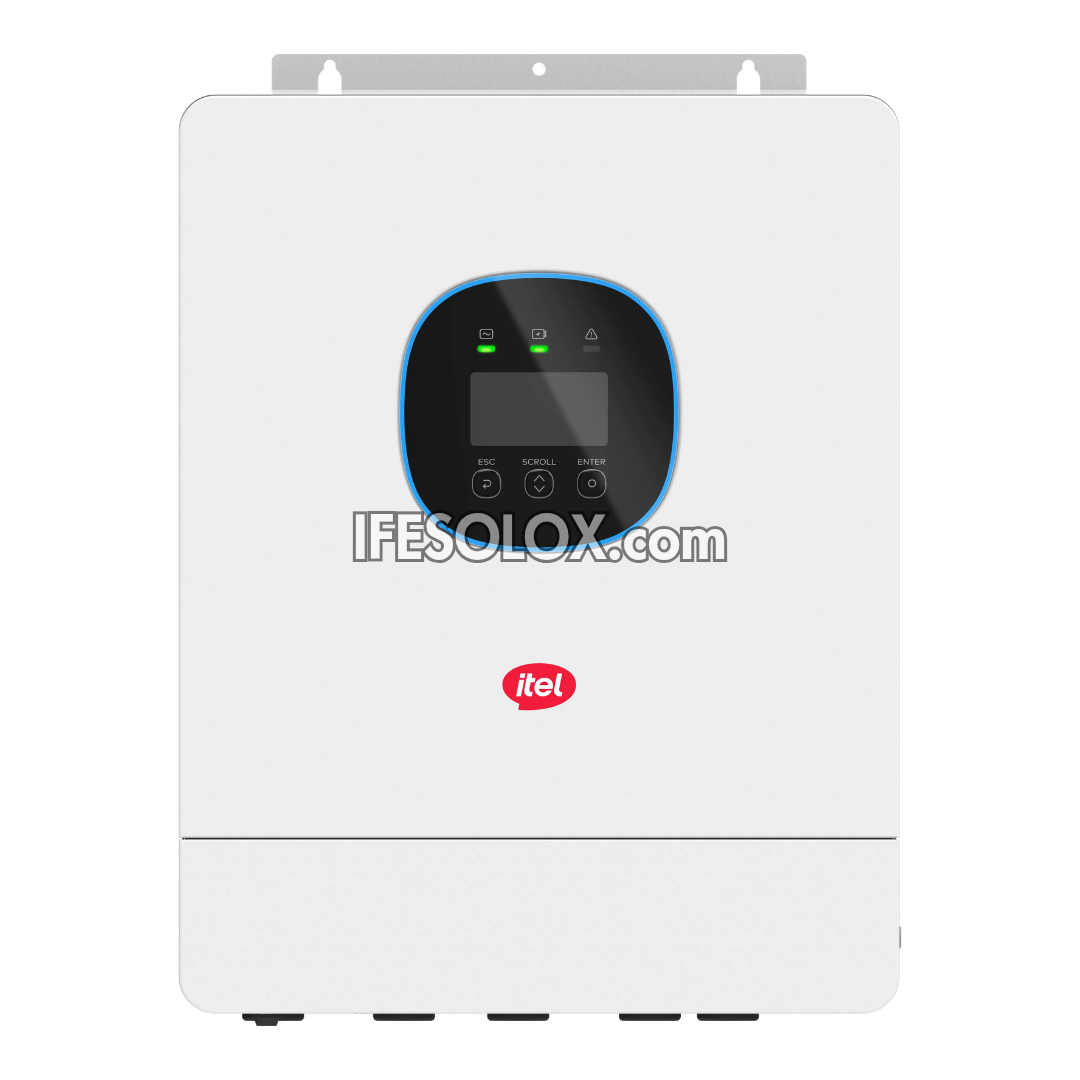

itel 3000W Hybrid Off-grid Inverter (IPV-3K24UPRO) - Brand New

• This Hybrid Inverter can handle both Li-ion and Lead-Acid batteries (24V D.C.) and has versatile charging capabilities. It can effectively convert solar energy with a maximum PV array power of 4500W (MPPT) and a wide input voltage range.

SPECIFICATIONS

• Rated Output Power: 3kW
• Battery Support: Li-ion and Lead-Acid (24V/ DC)
• Rated Voltage: 220VAC ~ 240VAC
• MPPT Tracking Efficiency: 99%
• Maximum Battery mode Conversion Efficiency: 93%
• Parallel: No
• Cooling Method: Intelligent Fan Cooling
• Overvoltage and Overload protection
• Dimensions (W x H x D) : 350 x 290 x 108 (mm)
• Net Weight: 6kg
• Communications: RS485/RS232
• Protection Rating: IP54
• Certifications: IEC62109-1, IEC62109-2, IEC61683
• Warranty: 2 Years

PV INPUT

• Maximum PV Array Input Power: 4500W (MPPT)
• Maximum PV Input Voltage Range: 500V
• MPPT Voltage Range: 70V ~ 425V
• Maximum Input Current: 18A

AC INPUT

• Nominal Voltage (Optional): 220VAC/ 230VAC/ 240VAC
• Input Voltage Range: 90VAC ~ 280VAC
• Maximum AC Input Current: 20A (Bypass Mode)
• Nominal Operating Frequency: 50/60Hz

AC OUTPUT

• Nominal AC Power: 3000W
• Maximum Output Apparent Power: 3600VA
• Nominal Voltage (Optional): 220VAC/ 230VAC/ 240VAC
• Nominal AC Frequency: 50Hz
• Overload Capacity: 100% to 150% @10s, 150% @2s

BATTERY

• Battery Type: Lithium-ion, Lead Acid/ Tubular
• Rated Voltage: 24V
• Battery Voltage: 20V ~ 30V
• Maximum MPPT Charging Current: 60A
• Maximum Mains/Generator Charging Current: 120A
• Maximum Discharging Current: 125A
