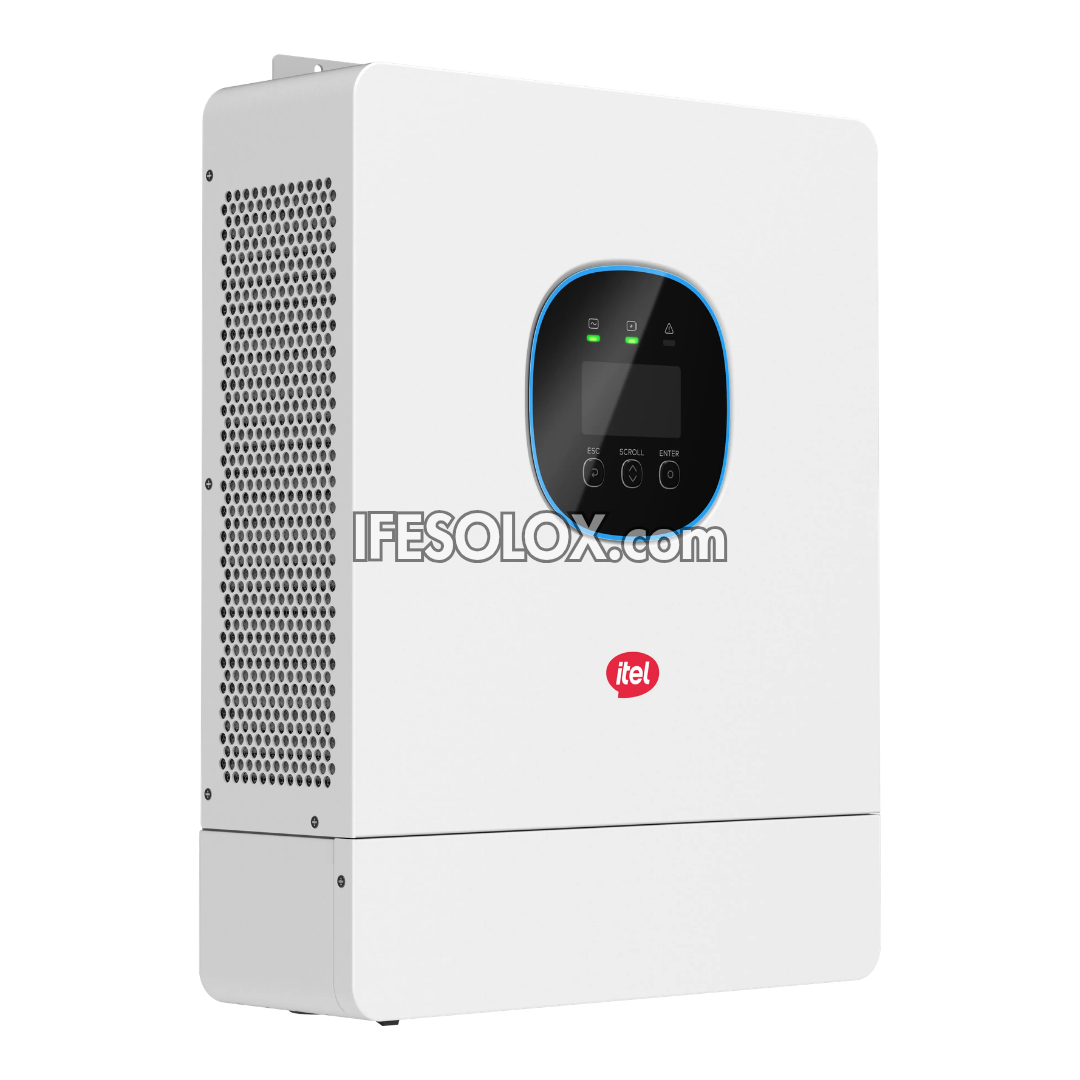

itel 1500W Hybrid Off-grid Inverter (IPV-1K512U) - Brand New

• This Hybrid Inverter can handle both Li-ion and Lead-Acid batteries (12V D.C.) and has versatile charging capabilities. It can effectively convert solar energy with a maximum PV array power of 650W (MPPT) and a wide input voltage range.

SPECIFICATIONS

• Rated Output Power: 1.5kW
• Battery Support: Li-ion and Lead-Acid (12V/ DC)
• Rated Voltage: 220VAC ~ 240VAC
• MPPT Tracking Efficiency: 99%
• Maximum Battery mode Conversion Efficiency: 93%
• Parallel: No
• Cooling Method: Intelligent Fan Cooling
• Overvoltage and Overload protection
• Communications: RS232
• Dimensions (W x H x D) : 350 x 290 x 108 (mm)
• Net Weight: 5.5kg
• Protection Rating: IP54
• Certifications: IEC62109-1, IEC62109-2, IEC61683
• Warranty: 2 Years

PV INPUT

• Maximum PV Array Input Power: 650W (MPPT)
• Maximum PV Input Voltage Range: 130V
• MPPT Voltage Range: 15V ~ 120V
• Maximum Input Current: 20A

AC INPUT

• Nominal Voltage (Optional): 220VAC/ 230VAC/ 240VAC
• Input Voltage Range: 90VAC ~ 280VAC
• Maximum AC Input Current: 10A (Bypass Mode)
• Nominal Operating Frequency: 50/60Hz

AC OUTPUT

• Nominal AC Power: 1500W
• Maximum Output Apparent Power: 1800VA
• Nominal Voltage (Optional): 220VAC/ 230VAC/ 240VAC
• Nominal AC Frequency: 50Hz
• Overload Capacity: 100% to 150% @10s

BATTERY

• Battery Type: Lithium-ion, Lead Acid/ Tubular
• Rated Voltage: 12V
• Battery Voltage: 10V ~ 15V
• Maximum MPPT Charging Current: 45A
• Maximum Mains/Generator Charging Current: 105A
• Maximum Discharging Current: 125A
