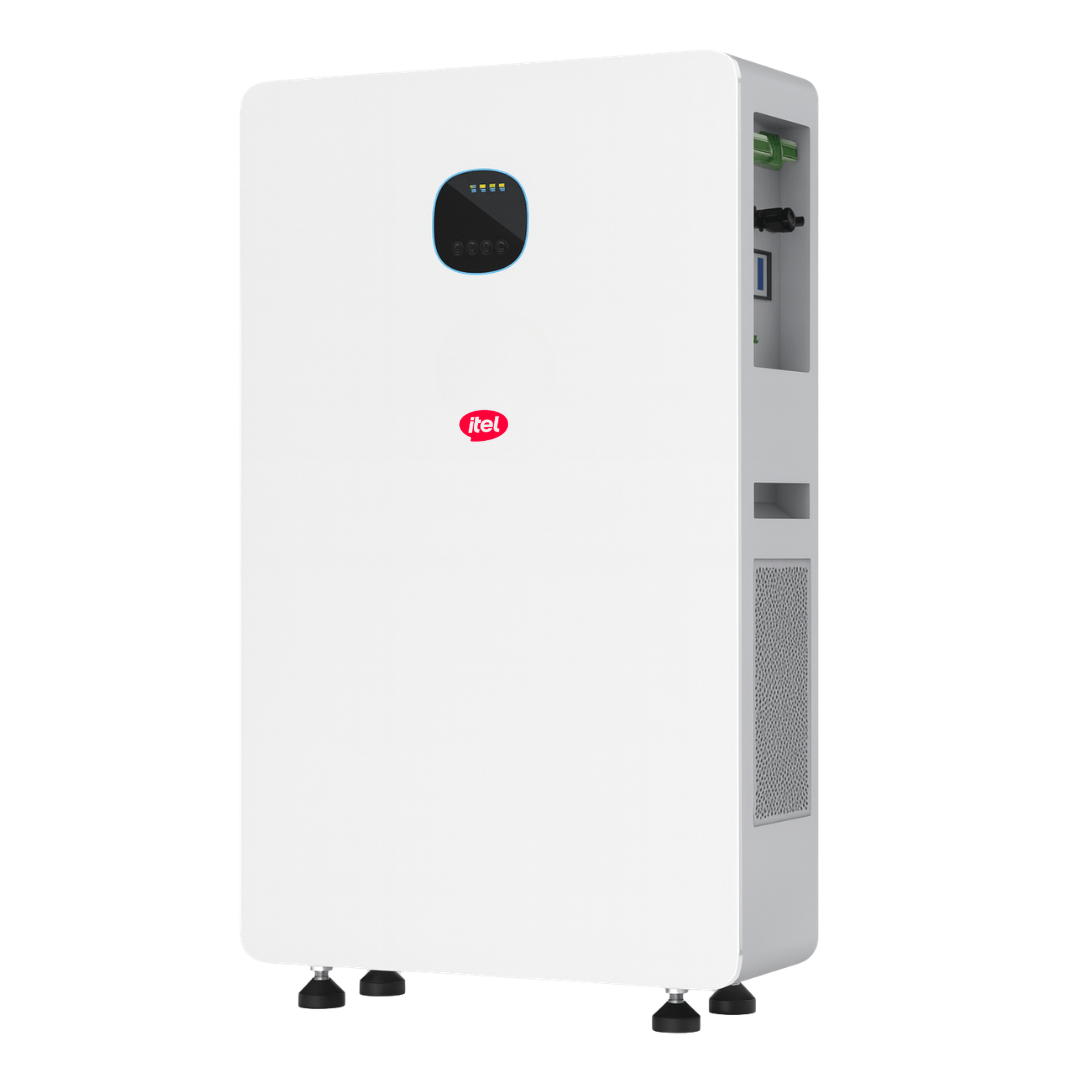

itel Power Hub All-in-one Solar Generator with 3.6kVA Inverter and 8kWh Lithium Battery (IESS-3K68ON) - Brand New

The itel Power Hub All-in-one Solar Generator provides a robust 3.6kVA inverter with an 8kWh lithium battery, enabling efficient energy management for various applications. With a continuous output of 3600 watts, this power station is designed for both residential and commercial purposes to support essential devices and appliances, ensuring reliable power supply in off-grid or emergency situations.

• Output Power: 3600VA/ 3600W
• AV Waveform: Pure Sine Wave
• Switching time: ≤10ms
• Battery Capacity: 8kWh (314Ah)
• Full load backup time: Up to 7 hours
• Battery type: LiFePO4
• Cycle life: 6000+ cycles
• Recharge time: Approximately 5 hours
• Solar input: Supported
• Use Scenario: Long duration backup
• Operating noise: 47dB

SPECIFICATIONS

PV INPUT

• Maximum PV Array Input Power: >5000W (MPPT)
• Maximum PV Input Voltage Range: 500V
• MPPT Voltage Range: 40V ~ 430V

AC INPUT

• Maximum Grid Input Voltage: 380Vrms
• Input Voltage Range: 160VAC ~ 280VAC
• Maximum AC Input Power: 4000W (Bypass Mode+ Battery charge)
• Maximum AC Input Current: 20A (Bypass Mode+ Battery charge)
• Nominal Operating Frequency: 50/60Hz

AC OUTPUT

• Nominal AC Power (Inverter mode): 3600W
• Maximum Output Apparent Power (Inverter mode): 3600VA
• Nominal AC Output Voltage(Inverter mode): 230VAC
• Nominal AC Output Current (Inverter mode): 16.4A
• Nominal AC Output Frequency (Inverter mode): 50Hz
• Overload Capacity: 105% - 150% after 3 seconds shutdown

BATTERY

• Battery Type: Lithium-ion, Lead Acid/ Tubular
• Rated Battery Voltage: 25.6VDC
• Rated Capacity: 314Ah
• Rated Energy: 8.038kWh
• Cycle life: 6000

GENERAL

• Protection type: Overload, Surge, PV over voltage, Grid OVP, Battery fuse, Short circuit, Over-temperature and Battery fuse
• SOC Display: LED
• Cool Method: Intelligent fan cooling
• Noise: ≤47dB
• Authentication level: IEC62619/ IEC62368/ UN38.3
• Dimension (W x H x D): 225mm x 288mm x 139mm
