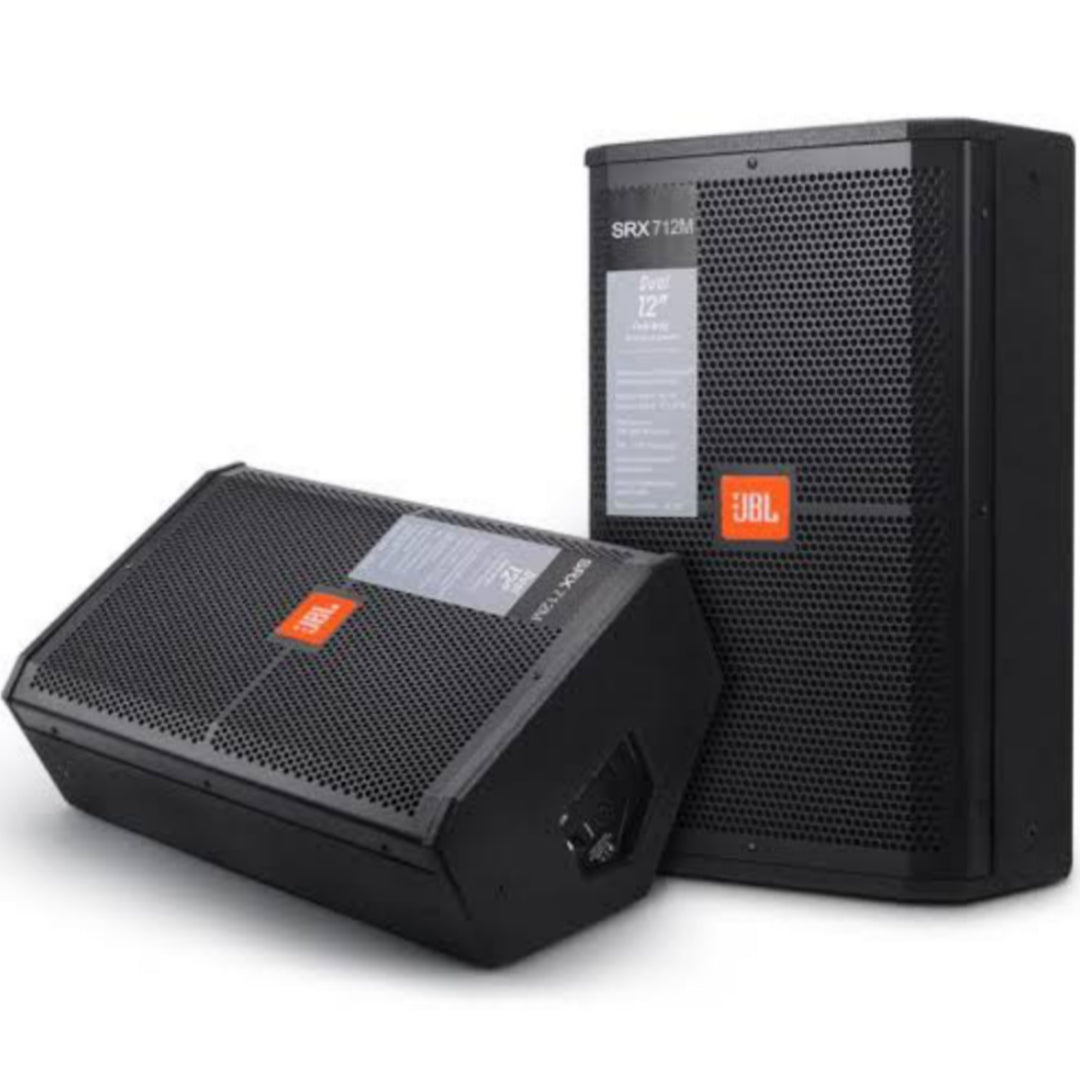

JBL SRX712M 12-inch High Power 2-Way Stage Monitor Passive Loudspeaker - Brand New

MANUFACTURER'S DESCRIPTION

The SRX712M was designed with one goal - build the lightest, smallest, loudest, clearest stage monitor possible while delivering strikingly professional appearance.

• The SRX712M can also do double duty as a utility speaker. For use on a tripod or over a subwoofer, JBL's dual angle pole mount is included. This feature allows the speaker to be mounted in a vertical position or with a 10° down tilt for optimum audience coverage.

• Compact and low-profile for minimal obstruction of audience sight-lines. Its unobtrusive design allows sound to reach its intended audience while staying out of sight.
• 90°x 50° nominal coverage.
• Bi-amplified or full-range passive operation.
• Dual-angle pole socket for applications requiring tripod mounting.
• Optional yoke available for trussmounted or suspended applications.
• Neodymium magnet Differential Drive® woofer for high-power capacity and very light-weight.
• 3 inch (diaphragm) neodymium magnet compression driver.

APPLICATIONS

• Live performance stage monitoring
• Speech reinforcement
• Reinforcement of vocal and acoustic music
• High-performance satellite speaker for use with subwoofers

SPECIFICATIONS

• System Type: 12", two-way, bass-reflex, stage-monitor/ utility loudspeaker
• Frequency Range (-10 dB): 70 Hz – 20 kHz
• Frequency Response (±3 dB): 83 Hz – 18 kHz
• Coverage Pattern: 50° x 90° nominal (Monitor position)
• Crossover Modes: Bi-amp/ passive, externally switchable
• Crossover Frequency: 1.2 kHz
• Power Rating (Continuous1 / Program / Peak)

1. Passive: 800 W / 1,600 W / 3,200 W
2. Bi-amp LF: 800 W / 1600 W / 3200 W
3. Bi-amp HF: 75 W / 150 W / 300 W

• Maximum SPL2: 131 dB SPL peak
• System Sensitivity (1w @ 1m): 96 dB SPL (passive mode)
• LF Driver: 1 x JBL 2262H 305 mm (12 in) Differential Drive
• woofer
• HF Driver: 1 x JBL 2431H 75 mm (3 in) voice coil, neodymium compression driver
• Nominal Impedance: Passive: 8 ohms

1. Bi-amp LF: 8 ohms
2. Bi-amp HF: 8 ohms

• Active Tunings: dbx DriveRack, all models.
• Enclosure: Symmetrical stage monitor, 15 mm, 11-ply birch plywood.
• Suspension / Mounting: Dual-angle (0° or -10°), 35 mm pole socket
• 2 x M10 fittings for optional SRX712M-YK yoke
• Transport: Integrated handle / input cup
• Finish: Black DuraFlex finish
• Grille: Powder coated, black, 16-gauge perforated steel with
• Acoustical transparent charcoal foam backing.
• Removable JBL badge and punched JBL logo.
• Input Connectors: Neutrik® Speakon® NL-4 (x2), one on each end
• Dimensions (H x W x D): 349 mm x 546 mm x 260 mm (13.75 in x 21.5 in x 10.25 in)
• Net Weight: 15 kg (33 lb)
• Optional Accessories:

1. SRX712M-CVR: Pull-over padded cover
2. SRX712M-YK : Suspension / mounting yoke

PACKAGE DETAILS

• JBL SRX712M
